RC-28 IP Remote Control System (Discontinued)

The RC-28 IP Remote Control System, allows Radio Amateurs to remotely operate selected Icom amateur transceivers with the enclosed RS-BA1 remote control software. The software comes complete with remote control USB encoder and will work with the IC-7100, IC-7200, IC-7300, IC-7410, and IC-9100 with a USB cable, and with the IC-756PROIII, IC-7000, IC-7400, IC-7610, IC-7700, IC-7800, IC-7850 and IC-7851 with a RS-232C cable.

MAJOR SELLING POINTS

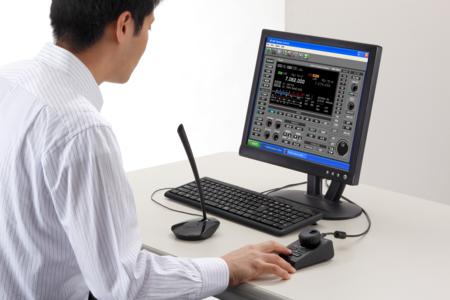

• The RC-28 IP Remote Control System allows you to use the radio installed in another room using your home network or even from a remote location over the Internet.
• Low voice latency (caused by the RS-BA1) provides the same operational experience as using an actual radio.
• The remote control USB encoder provides control of this system. It utilises the same tuning knob and encoder used on Icom HF radios, providing a tactile option for the RS-BA1 software. Includes a sturdy PTT and two user-programmable function keys.
Advanced Remote Control Interface Tailored to Icom Transceivers
• Most functions and modes of your transceiver, including interference rejection functions and IF filter settings, can be controlled. Also, S-meter and SWR can be observed.
• Rx Voice recording function.

The RS-BA1 software itself consists of two component software applications; System configuration software and remote control software. The system configuration software sets up IP address, audio sampling rate and other settings. The remote control software provides a user interface, similar to the radio's front panel, and allows you to control the radio from a remote location.

Connection with the IC-7100, IC-7300, IC-7410, IC-7200 or IC-9100
The IC-7100, IC-7300, IC-7410, IC-7200 or IC-9100 can be connected to a PC with a USB cable and the input/output audio signal and CI-V command is sent through the USB cable.

Connection with the IC-7610, IC-7700, IC-7800, IC-7850 & IC-7851
The IC-7851, IC-7850, IC-7800, IC-7700 or IC-7610 can be connected to a PC with a RS-232C cable plus S/P DIF or ACC cable.*

Connection with the IC-756PROIII, IC-7400 or IC-7000
The IC-756PROIII, IC-7400 or IC-7000 can be connected to a PC with an audio cable and RS-232C cable through CT-17 CI-V level converter.*

*RS-BA1 operation with the Base station's PC connected to the radio's ACC socket, MIC connector, or S/P DIF jack for audio communication cannot be guaranteed. Depending on your radio, a few functions or modes cannot be used, or you need to update the radio's firmware to operate the CW keyer, using the RS-BA1.

Supplied Items:
• Remote Control USB Encoder
• CD (including the RS-BA1 instruction manual, the RS-BA1 installer, the USB driver and the USB driver installation guide)
• USB cable (A-B type)
• Installation guides

  • Operating System requirements
  • Microsoft® Windows® 7 (32/34bit)
  • Microsoft® Windows Vista® (32/34bit)
  • Microsoft® Windows® XP (SP3 or later)
  • Network data speed requirement
  • For the transceiver location:Upload 500 kbps, or faster
  • Download 350 kbps, or faster
  • For the Remote location:Upload 350 kbps, or faster
  • Download 500 kbps, or faster
  • (When the default audio quality is used)
  • All stated features and specifications may be subject to change without notice.
  • IC-7100
    In 1995, almost three decades ago, Icom changed the way radio hams thought about mobile HF communication with the introduction of the IC-706. Since that time, the Icom Mobile HF radios have been the Performance HF mobile radio of choice. Now, Icom has once again changed mobile HF communications with the introduction of the IC-7100.
  • IC-7300
    The IC-7300 is a revolutionary compact radio that will excite HF operators from beginners to experts. This model has a high-performance real-time spectrum scope and employs a RF direct sampling system. The IC-7300’s real-time spectrum scope provides top-level performance in resolution, sweep speed and dynamic range. While listening to received audio, the operator can check the real-time spectrum scope and quickly move to the intended signal. The combination of the real-time spectrum scope and waterfall function improves the quality and efficiency of HF operation.
  • IC-7410
    The IC-7410 from Icom has been designed as a specialised HF/6M transceiver sporting excellent performance and features. The IC-7410 employs a high grade DSP unit and double conversion super-heterodyne system developed from the latest technology found in higher grade Icom rigs including the IC-7600, IC-7700 and IC-7800 series. In addition, the IC-7410 has a built-in 15kHz 1st IF filter and can accept up to two optional filters (3kHz/6kHz). When operated with these 1st IF filters, narrow mode signals such as the CW and SSB modes are protected from adjacent and unwanted strong signal interference.
  • IC-7600
    The IC-7600 HF/50MHz transceiver is enhanced with some of the main features tried and tested on our flagship IC-7700/7800 models, highly regarded by Amateur operators world-wide. Add over 45 years of analogue RF circuit expertise and the result is the IC-7600, a new rig with outstanding performance and a multitude of innovative features including a newly employed double conversion superheterodyne system and dual DSP units and 3kHz IF (roofing) filter.

  • IC-7610
    Whether it is poor band conditions, or battling to pick out a call in a large pile-up, faint signals have always been a challenge for DXers and Contesters around the world. The difference between putting the QSO in the log or having to try another time is the capability of your receiver. One key factor is the RMDR capabilities, the ability to pick out a faint signal in the presence of stronger, adjacent signals. The IC-7610 introduces dual RF direct sampling receivers, achieving 110dB RMDR, rivalling that of top-of-the-line transceivers.
  • IC-7700
    The IC-7700 HF/50MHz transceiver shares many features with its 'big brother', the world famous IC-7800. With two independent DSP units, a +40dBm* 3rd order intercept point and ultra wide dynamic range to name but a few of the features.
  • IC-7800
    Icom has developed the flagship model IC-7800 which is a fusion of forty years analogue RF circuit development expertise, with cutting edge digital technology.
  • IC-7851
    Contesters and DXers are always looking for that competitive edge to magically pull out the weak signal that is either that rare country or multiplier they need to climb up the list. Larger antennas, higher gain pre-amps and other devices in line are great. However, what happens inside the radio with all those signals coming down your feedline can defeat all your efforts.
  • IC-9100
    The IC-9100 all-in-one HF/VHF/UHF transceiver covers not only HF, 6M, 2M, 70cm and 23cm* Amateur radio bands, but also a variety of operating modes including SSB, CW, AM and FM. It also features dual band simultaneous reception, satellite mode operation and RTTY decode on the display.

This video goes through the step by set process of remote controlling an Icom Amateur radio, more specifically in this case, the IC-7300 using the RS-BA1 remote control software.

The video produced by TX Films shows Bob McCreadie (G0FGX) of TX Films demonstrates:
• Setting up your computer and radio
• Installing the RS-BA1 remote control software
• Accessing the IC-7300 remotely
