VHF/UHF Advanced Handheld Series
Designed for serious business use, the IC-F3162/F4162 VHF/UHF advanced handheld transceiver series includes the latest digital technology with the optional UT-126H "IDAS" 6.25kHz digital unit. While the IC-F3162 series looks the same its IC-F3062 predecessor, its functions and features have been upgraded. Together with the newly enhanced IC-F5062 digital mobile series and the IC-FR5100/IC-FR6100 digital repeater series can become an integral part of a sophisticated digital network.
4 versions available
IC-F3162S VHF transceiver, 5W, without keypad

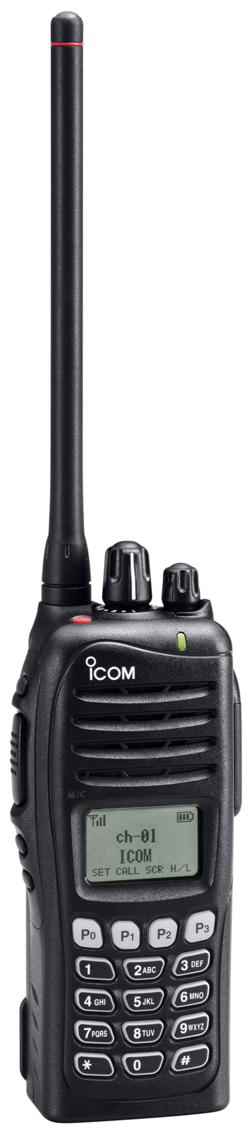

IC-F3162T VHF transceiver, 5W, with keypad
IC-F4162S UHF transceiver, 5W, without keypad
IC-F4162T UHF transceiver, 5W, with keypad
With the UT-126H digital unit, the following digital functions are available:
- Digital/analogue mixed mode operation
- Digital/analogue mixed mode scan
- Up to 64 RAN (Radio Access Number) settings for digital code squelch
- Individual, Talkgroup and All Call
- Data call (12-characters)
- Status message/request
- Digital Encryption using 15-bit encryption key
- Call alert
- Radio check
- Radio stun/kill/revive
- Remote monitor
- Emergency call
- Simultaneous GPS position report with voice call
Operating modes such as conventional mode and voting mode are programmed according to the memory zone. Once you program the voting mode to a memory zone, you can easily start voting mode operation by changing the zone setting.
- Voting group name and voted channel name indication
- Re-vote after talk function ... Automatically restart vote scanning when a call is finished.
The lone worker function is a substitute for the man down function. When the radio is not operated for a preset period (1 to 255 minutes), the radio sounds a beep requiring you to push any button. If a button is not pressed, an emergency signal is automatically transmitted and informs co-workers or a dispatcher that something may have happened to the individual worker.
Enhanced Scanning features
New scanning features have been added allowing migration from other radio brands.
- Mode dependent scan ... when the user changes the operating channel, the scanning list automatically changes following that channel setting.
- Tx channel programmable ... The Tx channel is the channel the radio transmits when the user pushes the PTT button while scanning. The Tx channel can be programmable per scanning list from start, last detected, priority and pre-programmed channels.
- Talk back function ... allows you to transmit on the detected channel when scanning stops or soon after scanning resumes, prior to the Tx channel setting.
- Talk back timer beep ... alerts you of the end of the talk back time with a beep sound.
- Nuisance delete ... Users can temporary skip a busy channel from the scanning list.
- Monitor key action ...A user can stop a scan when pushing the monitor button.
- Direct input of the Tx code (5-Tone), Individual/Talkgroup ID (Digital), Status number (BIIS/Digital), Message number (Digital) from the 10-key pad
- Escalating alarm
- Shares same cloning software, CS-F3160/F5060 as mobile
- Stun revive function (5-Tone)
- Programmable emergency button for a third party microphone
- GPS position reporting function (BIIS/Digital mode) with optional HM-170GP
- Improved low battery beep (Tx end function and beep periods programmable)
Full dot-matrix LCD
The IC-F3162 series has an easy to read, large full dot-matrix LCD (32 x18 mm), that shows upper and lower case characters clearly. The display setting is selectable from 1 line, 12 characters or 2 lines 24 characters via programming. While status icons are on the top side of the display, the bottom side shows assigned functions to the [P0] to [P3] buttons.
Large capacity Lithium-Ion battery pack
The supplied BP-232N 2000mAh large Li-Ion battery pack, provides 15 hours* of operating time (analogue/digital modes). * Typical operation Tx:Rx: Standby=5:5:90
Voice scrambler function
The IC-F3162 series has a built-in inversion type voice scrambler as standard. By installing an optional voice scrambler unit, UT-109R or UT-110R, more secure communication can be possible.
The IC-F3162 series employs a BTL amplifier that doubles the audio output delivering loud and clear sound.
512 memory channels and rotary channel knob
The IC-F3162 series has 512 programmable channels with 128 zones. With a simple rotation of the rotary channel knob, memory channels can be selected.
Most popular signalling built-in
The IC-F3162 series has 2-Tone, 5-Tone, CTCSS and DTCS signalling capabilities as standard for group communication or selective calling. The IC-F3162 series can decode ten 2-Tone codes or eight 5-Tone codes on a channel. When a matched tone is received, various actions are programmable for each code such as beep sounds, bell icons, answer back calls, Auto TX, stun/kill radio, scans etc. 40 pairs of CTCSS/DTCS memory channels are also available.
IC-F3162/F4162 Series Additional Features
- Built-in audio compander
- Flash CPU for future firmware updates
- Surveillance function temporarily turns off the LED backlight and beep sound
- VOX ready for hands-free operation
- Embedded ESN (Electronic serial number)
