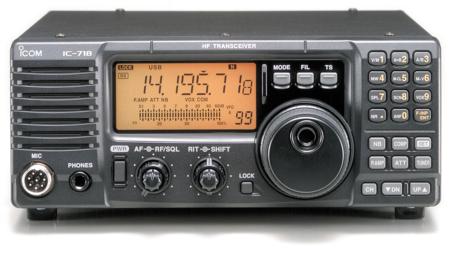

IC-718 HF All Band Transceiver Aimed as an entry-level product, the IC-718 continues all the traditions of high quality engineering that you would expect from Icom. Conveniently sized and easy to operate, the IC-718 utilises all the latest RF and digital technology and is designed to be one of the most practical rigs ever! The IC-718 offers an excellent overall specification coupled with ease of use. The first thing that strikes you about the IC-718 is its similarity to the IC-R75 and more importantly that the speaker is mounted on the front panel of the transceiver. With the speaker facing the operator audio can now be more clearly heard during operation. The IC-718 features a clean 100-Watts transmitter for SSB and CW and a built in electronic keyer for CW and 40 watts output on AM. As you would expect, an all mode, general coverage receiver is built in and covers 30kHz -29.999 MHz. A newly designed PLL circuit has been adopted to improve Signal / Noise ratio characteristics. This combined with a 4-element system mixer ensures truly superior performance. The IC-718 is equipped with a minimum number of switches and controls for ease of use. For example, the 10-key pad on the front panel allows you to directly enter an operating frequency, or access a memory channel. All popular operating modes are offered; USB, LSB, CW, RTTY (FSK) and AM, in addition there is a level adjustable noise blanker, a variety of scanning functions as well as a hand microphone and electronic keyer as standard. The auto tuning steps function speeds up tuning through the bands but only activates when turning the dial quickly. The band stacking register ensures that you always return to the last used frequency when changing bands. To reject interference, the IC-718 has an IF shift function which shifts the centre frequency of the IF passband electronically to reduce nearby interference. A microphone compressor ensures really punchy audio to get your signal through in difficult operating conditions. The compression level is easily adjustable from the front panel. This function really makes a difference when propagation conditions are poor. RF gain control is combined with the squelch control. The RF gain adjusts minimum response receiver gain and improves reception on the noisier bands. An electronic keyer with a variable dot/dash ratio control is built in. The CW pitch is variable from 300-900 Hz and the keyer speed goes up to 60 wpm! Full break in capability is available with an adjustable break-in delay. The IC-718 has a total of 101 memory channels, which stores operating frequency and mode. The IC-718 has a number of options available to enhance the model including UT-106 DSP unit to further improve receiver performance, CR-338 High Stability Crystal improve the frequency stability to within . 5ppm, UT-102 voice synthesiser, which gives the IC-718 a clear electronically generated voice etc.
- Entry level HF base station transceiver
- Multi mode operation (USB, LSB, CW, RTTY(FSK), AM)
- 101 memory channels with alphanumeric name capability
- Front mounted speaker for clear audio
- Newly designed PLL circuit improves Signal/Noise ratio characteristics
- Dimensions : 240(W) x 95(H) x 239 (D) mm
- Weight : 3.8kg
Mobile whip & bracket
100W HF Automatic Antenna Tuner can be used with a variety of Icom HF Amateur radios.
2-30MHZ Folded dipole antenna
Automatic Antenna Tuner Unit
CI-V level converter (communications interface)
SSB Narrow filter (455kHz crystal filter. 1.8kHz/–6dB)
SSB Wide filter (455kHz crystal filter. 3.3kHz/–6dB)
CW/RTTY Narrow filter (455kHz crystal filter. 500Hz/–6dB)
455kHz CW/RTTY narrow filter, 250Hz
Hand Microphone with PTT and modular (telephone) type plug.
Icom radio rucksack, originally for the IC-703 QRP mobile
Control Head Mounting Base
Mobile mounting bracket
Mobile mounting bracket (front panel)
Carrying Handle for Icom IC-706MKIIG and IC-703
Separation cable (3.5m)
Separation cable (5m)
Microphone adapter cable
Accessory extension cable
Switching power supply for HF/VHF base station transceivers. The major difference between the PS-125 and our current model PS-85 is its capacity. The PS-125 has a maximum 25 A capacity.
The SM-30 Desktop Microphone, is an entry level desktop microphone designed to work with Icom's range of HF base station radios.
Mobile extension speaker (5W 4OHM)
Matching External Speaker for the IC-7610
Voice synthesiser unit announces the operating mode, frequency and signal strength level, etc.
