IC-F3032S/F4032S series

IC-F3032S/F4032S series
Waterproof VHF And UHF Transceivers

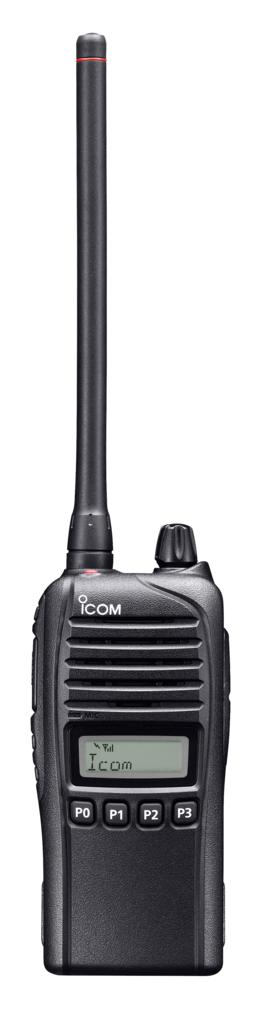

The IC-F3032S is a two way business radio that is completely waterproof and dust-tight to IP67 specification. With a competitive price, the IC-F3032S provides an economical solution for those working in harsh environments. This model will be suitable for event management, construction or even those users that work close to the water such as ferry or port operation workers.

IP67 Dust-tight and waterproof protection
The IC-F3032S series provides protection against dust and water to the equivalent of IP67. The IC-F3032S series can withstand 1m depth of water for 30 minutes and its dust-tight construction protects the radio from powder dust, sand, mud and other objects.

BP-232WP waterproof Li-Ion battery pack supplied as standard
The supplied BP-232WP IP67 rated high capacity Lithium-Ion battery pack provides outstanding temperature characteristics even in extremely cold areas and provides stable output for longer operating time.
* To guarantee the IP67 rating, the BP-232WP battery pack must be used with the IC-F3030S series. The “IP67” label is attached to the BP-232WP for an identification mark.

Lone worker function
The IC-F3032S/F4032S can be configured in such a way that when the radio is not operated for a preset time, the radio will sound a beep requiring an individual to push any button. If no button is pushed, an emergency signal will be automatically transmitted informing fellow workers that something may have happened to that individual.

Icom’s first waterproof PMR model with optional Mandown facility
This is Icom’s first waterproof PMR model with optional Mandown facility which makes it an indispensable communication tool but also a vital element in your health and safety policy. The internal 40-pin socket in the IC-F3032S series also allows for Voice scrambler, DTMF decoder optional units.
* Only one option board can be selected.

Optional speaker-microphones
A number of optional microphones are available. The HM-168LWP is a waterproof and dust-tight (IP67) speaker microphone for use with the IC-F3032S series. The HM-158LA, HM-159LA, HM-153LA and HM-166LA are non-waterproof speaker/earphone microphones. The shape of the connector base has been slightly changed from the existing L-type connector base.

5-Tone, CTCSS and DTCS function built-in
The IC-F3032S series has built-in 5-Tone, CTCSS and DTCS signalling capabilities for group communication or selective calling. When a matched 5-Tone is received, the following actions are programmable to respond to each code:
• Answer back call
• Beep sound
• Bell icon
• Stun/kill/revive
• Auto TX
• Scanning

Emergency function
A red button on the top radio can be used as an emergency button so that if it is held down for a preset period, an emergency signal can be transmitted.

Alphanumeric LCD
The IC-F3032 series has an 8-character 14 segment alphanumeric LCD. Function icons show a variety of operating information at a glance.

Other features
• BIIS 1200 PTT ID transmission
• Priority scan and double priority scanning
• Surveillance function
• Up to 128 memory channels with 8 zones
• 8 DTMF autodial memories
• Uses CS-F5010 cloning software (same as IC-F3022 and IC-F5012 series)
  • SPECIFICATION
  • IP67 waterproof and dust-tight protection
  • BP-232WP waterproof Li-Ion battery pack supplied as standard
  • 5-Tone, CTCSS and DTCS encoder/decoder built-in
  • Lone worker function
  • Icom’s first waterproof business radio with optional man down facility
  • BIIS 1200 (PTT ID transmission)
  • 8 character alphanumeric LCD display
  • 128 memory channels with 8 zones
  • Optional voice scrambler, Mandown or DTMF decoder units available
  • Optional HM-168LWP waterproof speaker-microphone
  • 2 Year Warranty on Transceiver
  • AD-106
    Charger adapter for use with BC-119N/121N (BP-209/210/211/222)
  • BC-119N
    Universal Icom Fast Charger
  • BC-121N
  • BC-145
    AC adapter for BC-119N & BC-144
  • BC-157S
  • BC-160
    The BC-160 charger has been designed to work with our latest range of Li-ion battery packs, the BP-230, BP-231 and BP-232.
  • BC-197
    The BC-197, 6-Way Multi-Charger is a new Icom charger for the IC-F3002 entry level series. The BC-197 is smaller in size and lower in height than Icom’s other 6 way charger, the BC-121N. There are 6 charging positions with function indicator LEDs.
  • BP-232/N/H/WP
    Voltage/Capacity - 7.4V/2000mAh Charge time (approx.) - 1.5 hours
  • BP-240
    AAA (LR03) x 6 battery case
  • FA-SC57U
    Antenna (430-470 MHz)
  • FA-SC57VS
    Stubby antenna 160 -174MHz
  • FA-SC73US
    Stubby antenna 450 -470MHz
  • HM-153LA
    Durable earphone microphone for IC-F3032S Two Way radio series.
  • HM-158LA
    Compact speaker microphone
  • HM-159LA
    Full size durable speaker microphone.
  • HM-166LA
    Light-weight type earphone microphone for the IC-F3032S Two way radio series.
  • HM-168LWP
    The HM-168LWP is a waterproof and dust-tight (IP67) speaker microphone for use with the IC-F3032S series.
  • MB-93
    Swivel belt clip
  • MB-94
    Alligator type belt-clip
  • MB-96F
    Leather belt clip for IC-F51/61 ATEX
  • MB-96N
    Swivel type leather belt hanger (Swivel joint of the MB-86 is required).
  • OPC-515L
    DC lead for battery chargers
  • OPC-656
    DC Power Cable (for use with BC-121)
  • SP-13
    Compatible with a wide range of Amateur and PMR handhelds.
  • SP-27
    The SP-27 features a clear acoustic tube that is designed to be hidden behind the ear making it hard to see. This makes it an ideal earphone for security, hotels, restaurants, retail and airports.
  • UT-108R
    The UT-108R (40 pin) DTMF decode unit. Provides DTMF selective call and ANI.
  • UT-109R
    Non-rolling type voice scrambler unite. 40-pin type.
  • UT-110R
    Rolling type voice scrambler unit. 40-pin type.
  • UT-124/R
    Man-down unit aimed at commercial users. Both UT-124 (30-pin type) and UT-124R (40-pin type) have a state of the art two-axis acceleration sensor providing a more accurate man down state detection.
