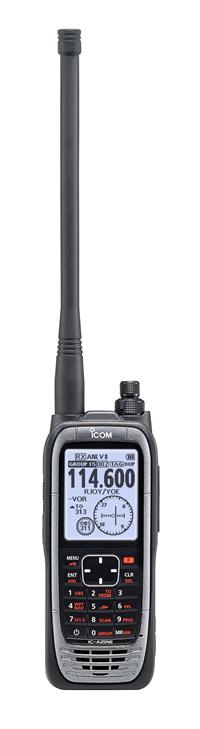

IC-A25NE 8.33kHz/25kHz VHF COM/NAV Airband Radio

The IC-A25NE is the latest development in airband radio technology featuring built-in GPS and significant VOR navigation functions. Featuring 6 watts of output power, this stylish modern design, easy-to-use interface and large 2.3-inch LCD combine to provide stress-free programming and easy in-flight operation. The handheld includes a large 2350mAh Li-ion battery, providing longer operating time.

6 Watts High RF Output Power
For expanded communication coverage, output power has been increased to approximately 6 W typical (PEP) 1.8 W (carrier) compared to the IC-A24E (5/1.5 W (PEP/carrier)).

Easy-To-Use Interface
Often used functions are assigned to the ten-key pad and you can directly access the desired function. The enlarged flat sheet keypad offers smooth and swift operation.

2.3-inch Large High Visibility LCD
The large, high contrast and highly visible LCD display user-friendly, graphic screens and ensures good readability under sunlight. The operating frequency in large characters can be recognized at a glance. Also, the night mode option allows for easy viewing in low light conditions.

“Flip-Flop” Channel Recall
The IC-A25NE stores the last ten channels used. You can easily recall those channels by using the directional keys or the channel knob or the keypad. This is convenient for switching between several channels, such as NAV and COM channels. You can also freely edit (replace, delete, and change order) the stored recall channels.

Built-in Bluetooth for Hands-Free Operation (dependent on version)
Hands free operation can be achieved when paired with a compatible third-party wireless Bluetooth headset. When using the optional VS-3 Bluetooth headset, the sidetone function can be used.

Intelligent Battery with Detailed Battery Information
The supplied BP-288, 2350 mAh typical intelligent battery pack, provides up to 10.5 hours* of operating time. You can check the condition of the battery pack in the battery status screen. This is very useful for optimum charging and battery health maintenance.

Other Features
• 8.33 kHz channel spacing
• IP57 dust-protection and waterproof construction
• Operate with six AA-size alkaline batteries with the BP-289 battery case
• BNC Antenna connection
• 121.5 MHz emergency key
• Priority watch
• VFO scan, memory-channel scan, priority scan
• ANL (Auto Noise Limiter) for noise reduction
• Side tone function allows you to hear your voice via an external aviation headset
• Internal VOX capability
• 300 memory channels (in 15 memory groups) with 12 character names

NAVIGATION FUNCTIONS

VOR Navigation Functions
The CDI (Course Deviation Indicator) is detailed like a real VOR instrument; showing any deviation from your course.
The OBS (Omni Bearing Selector) allows you to change course from the original flight plan.
The TO-FROM indicator shows the position relationship between your aircraft and the course selected by the OBS.
The ABSS (Automatic Bearing Set System) function enables you to set the current course or a new course in two simple steps.

Near Station Search Function
The near station search function assists you in accessing nearby ground stations. The function searches for nearby stations using the station memories with the GPS position information. To use the near station search function, location data and frequencies of the ground station must be programmed.

Built-in GPS with Simplified Waypoint NAV
The simplified waypoint NAV guides you to a destination by using current position information from GPS (also GLONASS and SBAS). The waypoint NAV has two functions: Direct-To NAV and Flight Plan NAV. Up to 10 Flight Plans and 300 waypoints can be memorised in the IC-A25NE.

Flight Plan with Android/iOS App
Using RS-AERO1A (Android app) or RS-AERO1I (iOS app), you can make a flight plan on an Android/iOS device and import the plan to the IC-A25NE via Bluetooth. The following four functions are available:

1. Create a flight plan
You can make flight plans on an Android/iOS device by using preprogrammed waypoints in the IC-A25NE.
2. Set Direct-To NAV
You can pick up a point on the map and export it to the IC-A25NE for Direct-To NAV.
3. Display flight plan information
A flight plan in the IC-A25NE can be displayed on an Android/iOS device.
4. Display waypoint information
Preprogrammed waypoints in the IC-A25NE can be exported to an Android/iOS device and plotted on the map application.

Please note that as of November 1st 2022, the RS-AERO1A Android application for the IC-A25NE hand-portable radio has been removed from Google Play. For more details about this, click here.

If you have already downloaded this app before this date, it will still work.

Two Versions are available for both IC-A25CE and IC-A25NE
A ‘Sport’ pack is available combining the IC-A25CE or IC-A25NE transceiver with BP-289 AA Battery Case, CP-20 cigarette lighter cable with DC-DC converter, MB-133 belt clip, FA-B02AR antenna and hand strap.

A ‘Pro’ pack is available combining the IC-A25CE or IC-A25NE transceiver with BP-288 Li-Ion battery pack, OPC-2379 headset adapter cable, BC-224 rapid desktop charger, BC-06 AC adapter, CP-20 cigarette lighter cable with DC-DC converter, MB-133 belt clip, FA-B02AR antenna and hand strap.

To download the latest LA3 Radio Approval certificate in pdf format, click here.

  • 6 Watts High RF Output Power
  • 2.3-inch Large High Visibility LCD
  • Easy-to-use Interface
  • Built-in Bluetooth for Hands-Free Operation (dependent on version)
  • Intelligent Battery with Detailed Battery Information
  • VOR Navigation Functions
  • Near Station Search Function
  • Built-in GPS with Simplified Waypoint NAV
  • Flight Plan with Android/iOS App
  • 8.33 kHz channel spacing
  • IP57 dust-protection and waterproof construction
  • BC-06
    UK 12v 1Amp charger.
  • BC-224
    Rapid Charger. Charges the BP-288 in approximately 3 hours.
  • BP-288
    Li-ion battery Pack. 7.2 V 2200 mAh (min.) 2350 mAh (typ.). IP57 protection.
  • BP-289
    Battery case 6 × AA (LR6). IP54 protection.(std)
  • CASE.029
    Black Nylon Shoulder Strap 2 Clips. For use with CASE.064, CASE.065 and CASE.067
  • CASE.067
    Soft leather case for IC-A25CE/NE
  • CP-20
    Cigarette Lighter Cable with DC-DC converter.
  • FA-B02AR
    Standard Icom airband antenna.
  • HM-231
    Waterproof Speaker microphone for IC-A25CE and IC-A25NE
  • MB-133
    Alligator style belt clip
  • MB-96F
    Leather belt clip (Discontinued)
  • MB-96FL
    Fixed long leather belt hanger
  • MB-96N
    Swivel type leather belt hanger (Swivel joint of the MB-86 is required).
  • OPC-2379
    The Icom OPC-2379 headset adapter cable allows you to use ICOM IC-A25NE & IC-A25CE transceivers with conventional GA headset.
  • ProEquip BT550
    Bluetooth headset with PTT and dual connectivity capability.
  • ProEquip BT560
    Bluetooth PTT microphone with volume control and 3.5mm connector for headset.
  • RS-AERO1i
    The RS-AERO1A (for iOS™ devices) is an application for viewing and editing waypoints and flight plans used in the navigation function of the IC-A25NE.
  • VS-3
    Bluetooth headset with earpiece and microphone (comes with PTT switch).

Virgil Parker, Avionic and Marine Product Specialist gives an overview of the ICOM IC-A25 family of Airband handheld transceivers. In addition, he demonstrates how to:

• Change Frequency
• Storing and saving frequencies into memory
• Accessing Battery Status
