IC-M430E

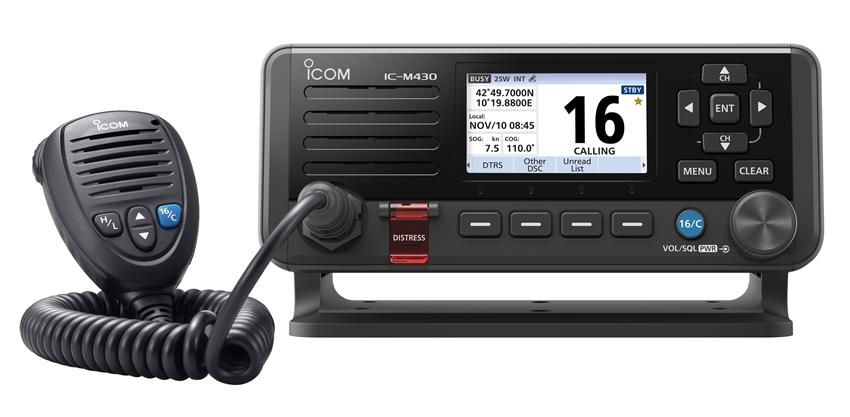

Designed for modern wheelhouses where space is a priority, the IC-M430 features an ultra-slim design with 50% less depth than previous models, making integration easier. Key features include a vivid colour TFT LCD with Night Mode for clear viewing in all lighting conditions. It has built-in GPS and NMEA 2000®/NMEA 0183 connectivity. It also supports full dual-station capability via the optional HM-195 series CommandMic™.

Enhanced Visibility: Three Display Modes for Comfortable Operation
Featuring the first colour display in its class, the wide viewing angle and bright screen deliver exceptional readability in any environment. Choose between Light, Dark, or Night modes. Whether operating in direct sunlight or complete darkness, the display remains clear and legible. Switch between Day and Night modes with a single button press, while backlit keys ensure confident operation in low light.

Designed for Marine Duty: 25 W RF Output with Class D DSC
For safety on the water, the IC-M430E delivers 25 W of transmit power alongside built-in Class D DSC functionality for dedicated distress alerting and direct calling.

Slimmer Body Fits in Tight Spaces
The compact 202 × 82 × 52.6 mm chassis provides exceptional installation flexibility. Its slim profile allows installation in confined spaces while maintaining ample clearance behind the radio for tidy cable management.

Simplified Flush Mounting
The radio features sleek MFD-style mounting for a clean, integrated finish. Screw the unit into place from the front; snap-on side covers conceal all mounting hardware. This mounting method is ideal for console installations and hardtop side pods.

Expand Your Onboard System: Remote Microphone Installation Options
The supplied hand microphone can be plugged directly into the front panel or rear-mounted using the optional OPC-1000 extension cable. For dual-station capability, the optional CommandMic™ provides full remote control from a second position with cable extensions up to 18.3 m / 60 ft and supports intercom functionality between stations. This setup is ideal for sailing vessels requiring a second helm station. A 90° L-type conversion cable is also available to prevent connector stress and damage in tight spaces.

Flexible System Integration
The IC-M430E supports plug-and-play connectivity via NMEA 2000® and NMEA 0183-HS networks, enabling seamless data sharing with onboard marine electronics. When integrated with the Icom MA-510TR AIS transponder, you can transmit individual DSC calls directly to selected AIS targets.

Built-in GNSS (GPS) Receiver & Antenna
The unit features a built-in GNSS receiver with an integrated internal antenna. For installations where satellite reception is restricted, such as inside an enclosed wheelhouse or cabin, the optional UX-241 external GNSS antenna can be added.

Other Features
· VSWR (Voltage Standing Wave Ratio) alert function to notify of antenna issues.
· 25 W loud audio with hailer and automatic foghorn functions.
· Active Noise Cancelling (ANC) to reduce background noise on transmit and receive.
· Dualwatch and Tri-watch functions for monitoring Channel 16 and/or call channels.
· Optional flush mount kit available for traditional rear-clamping installation.
· IPX7 waterproof protection (1 m depth for 30 minutes) .
· AquaQuake™ draining function to clear water from the speaker grille.
· Priority and normal scan modes.
· Supports 4-digit marine channels.
