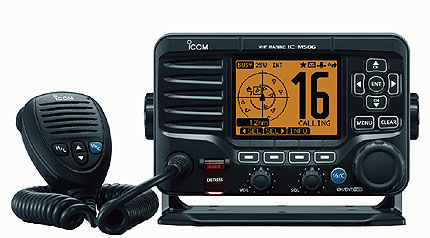

IC-M506EURO VHF/DSC Marine Transceiver with NMEA 2000 Connectivity & AIS Receiver (Discontinued)

The IC-M506 is packed full of features including integrated AIS receiver, NMEA2000 connectivity, ‘Last Call’ voice recording function, ‘Active Noise Cancelling’ technology plus Icom’s new intuitive menu-driven user interface and large dot matrix display making it really easy to use.

This product is no longer available. If you are looking for a replacement, then visit the IC-M510E VHF/DSC Marine Radio product page.

Integrated AIS Receiver
With an integrated AIS receiver, the IC-M506EURO can show real-time AIS vessel traffic information on the display. The AIS target call function allows you to easily set up a DSC individual call. The Plotter, Target list and Danger list can be toggled on the display.

NMEA Connectivity
A typical installation will connect to your chart plotter using the NMEA2000™ protocol for AIS data transfer. This allows you to overlay received AIS data onto your chart plotter from your radio.

NMEA 0183 is used to interface GPS position data and received DSC information with your chart plotter. The IC-M506EURO can receive and transmit GPS (position, course (COG) and speed (SOG)), AIS report and DSC call information data and transmit radio frequency and PGN list data over the NMEA network.

Last Call Voice Recording
The last call voice recording function automatically saves the last two minutes of the last incoming call. You can re¬play the received call, and not miss any incoming call.

Active Noise Cancelling
Using digital signal processing technology, the built-in bidirectional active noise cancelling provides superb performance. It reduces background noise to up to 90% in the received signal and 30% fixed in the transmit¬ting signal. The function OFF setting is also possible.

Intuitive Menu-Driven User Interface
The intuitive software key functions provide easy and fast operation to control the multiple functions of the IC-M506EURO. The bottom line of the dot-ma¬trix display shows the software key functions which can be toggled with the left and right buttons.

25W Two-Way Hailer
When connected to an external hailer horn, you can talk to people on the deck or shore from the radio’s mi¬crophone and can hear people’s reply via the hailer speaker. The RX hailer function allows you to monitor the received audio from the hailer horn. 25W amplifier increases your talk power making your communication loud and clear.

Built-in Horn (Automatic & Manual)
Foghorn feature is built-in via the external Hailer horn. Four horn patterns are selectable for the automatic horn function.

ITU Class D DSC (Meets ITU-R M493-13)
The built-in DSC watch function monitors Ch. 70 (DSC channel) activity, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling re¬quest and DSC test calls. Up to 100 DSC address IDs can be programmed.

Rear Microphone Version*
With this version, the microphone connector is drawn from the rear panel and a 6.1m (20ft) microphone extension cable i s supplied to allow you clean and neat panel installation.
* Ask your dealer for details.

IPX8 Advanced Waterproof
The IC-M506EURO and supplied HM-205B/RB microphone can withstand 1m (3.2ft) depth of water for 60 minutes.

Other Features
• Simple remote control speaker-microphone, HM-205B/RB
• 15W audio output power (with external speaker)
• AquaQuake™ draining function
• Optional voice scrambler, UT-112 for private conversation
• MA-500TR AIS transponder and MarineCommander™ compatible

Optional COMMANDMIC™ for 2nd Station Capability

Full Control and Intercom
The optional COMMANDMIC, HM-195B/ SW provides 2nd station capability for using the IC-M506EURO from up to 18.3m (60ft)* away such as a separate cabin or tower. Most functions including DSC and AIS functions can be controlled from the COMMANDMIC and can be used as an intercom with the IC-M506EURO. One COMMANDMIC can be used.
* Two optional OPC-1541 extension cables required.

IPX7 Waterproof Construction
The HM-195B/SW withstands submersion in up to 1m depth of water for 30 minutes.

Same Menu-Driven User Interface with IC-M506EURO
The HM-195B/SW provides same user interface with the IC-M506EURO. The directional keypad and softkey buttons allow you to perform various operations and settings. The audio and backlight levels can be set independently from the IC-M506EURO.

Other Features
• External speaker connection
• Remote power ON/OFF function
• Black and super white color version
• This product comes complete with a simple plastic flush mount kit. Stainless steel flush mount kits are available as an option.

  • 2 Minutes Last Call Voice Recording
  • Superb Active Noise Cancelling
  • IPX8 Advanced Waterproofing (1m depth water for 60 minutes)
  • New Intuitive User Interface
  • Large Dot-Matrix Display (132 × 96 pixels)
  • Optional COMMANDMIC™ HM-195B/SW for 2nd Station/Intercom
  • Built-in Class D DSC (Meets ITU-R M493-13)
  • 25W Two-Way Hailer and Horn
  • Integrated AIS Receiver
  • NMEA 2000™ Connectivity
  • CB2000
    Introducing the advanced CB2000 AIS transponder unit which transforms the ICOM IC-M506GE/EURO, IC-M510E and IC-M605EURO to VHF/DSC radios complete with Class B AIS transponders. The CB2000 also provides a simple solution for those customers who already own an IC-M506GE/EURO, IC-M510E or IC-M605EURO and wish to upgrade their radios with the purchase of this Class B AIS transponder.
  • GPS.001
    GPS Active Antenna
  • HM-195B Commandmic
    The optional HM-195 Commandmic allows you to use the IC-M423/G, IC-M506 & IC-M400BB from a separate cabin or tower and can be positioned up to 18.3m (60ft) away from the radio.
  • MB-132
    Flush mount kit
  • MB-75
    Marine Flush Mount Kit
  • OPC-1541
    Extension cable for HM-162B/SW/E (6m/20ft)
  • UT-112
    The UT-112 Voice Scrambler allows private VHF communication when using the Icom IC-M501E, IC-M506GE and IC-M605EURO.
