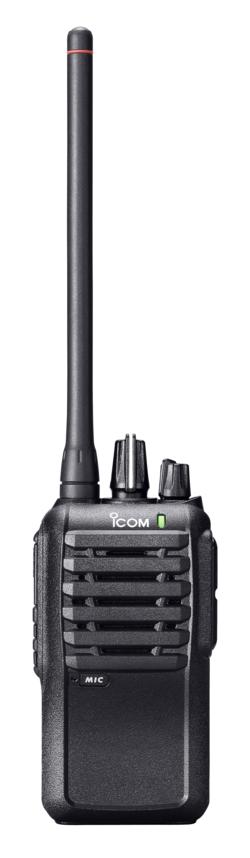

IC-F3002/F4002 series

IC-F3002/F4002 series
VHF and UHF Commercial Transceivers

The IC-F3002/F4002 series of entry level handportable radios offer simple operation, outstanding audio, high performance and strong commercial build. The series, divided into the IC-F3002 (16 channel) for VHF and IC-F4002 (16 channel) for UHF, are ideal for a wide range of business and industry sectors that are searching for a simple yet dependable communication solution.

800mW audio output power
The built-in bridge-tied load (BTL) amplifier provides powerful 800mW* audio output from the large 45mm speaker. The radio delivers loud and intelligible audio even in noisy environments. (* Typical with internal speaker)

Low consumption for longer operating time
A new, high-efficiency FET reduces current consumption and provides 20 hours* of operating time with the included BP-265 Lithium-Ion battery. * Power save function ON with 5% TX, 5% RX, and 90% standby.

Simple operation for instant communication
Simplicity is the key behind the design of the IC-F3002 series. The IC-F3002 series is so easy to use there's no special training required. The few knobs and buttons are generously sized for easy operation and are designed to provide non-slip, positive action — even while wearing gloves. This simple interface makes it ideal for high turnover environments and shift work where the radio is constantly passed from person to person.

Weather resistant, dust protection, military rugged
While the radio is a compact unit with a height of only 111mm the radio is tested to dust protection and water resistant equivalent to IP54 and 11 categories of MIL-STD-810 environmental test. In short, the IC-F3002 series is built rugged!

Internal VOX capability for hands-free operation
The radio has the internal VOX capability for hands-free operation. Optional compatible headset with plug adapter cable OPC-2004 can be used with the radio. Also, the VOX gain and VOX delay time are adjustable.

5-Tone encoder/decoder
5-Tone signalling gives you selective calling, quiet stand-by and other convenient functions with programming. The radio “stun” function disables a radio over the air and the “revive” function restores the stunned radio.

CTCSS/DTCS encoder/decoder
The IC-F3002 series has added CTCSS/DTCS high speed decoder to reduce the decode speed to nearly half of its predecessor, the IC-F15 series.

Scan features
The priority scan allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talk back functions allow you to make a quick response while scanning.

Lone worker function
When the radio is not operated for a preset period, any radio operation is required with a beep sound. If the radio is not operated within that preset time, an emergency signal automatically transmits and alerts your co-worker or dispatcher to any potential trouble.

Other features
- DTMF autodial
- BIIS PTT ID transmission
- Low battery alert
- PC programmable
- Transceiver-to-transceiver cloning
- Talk around function
- Time out timer
- Enhanced emergency
- 2-step power save
- Surveillance function

  • Simple operation for instant communication
  • 800mW (typical) loud and intelligible audio with BTL amplifier and large 45mm speaker
  • Lithium-ion battery & rapid charger supplied as standard
  • IP54 and MIL-STD-810 rugged body
  • Low consumption current for longer operating time
  • CTCSS/DTCS tone encoder/decoder built-in
  • 5-Tone encoder/decoder built-in
  • Internal VOX function (Optional headset and adapter cable required.)
  • 2 Year Warranty on Transceiver
  • BC-06
    UK 12v 1Amp charger.
  • BC-193
    Rapid desktop charger for Li-Ion battery pack BP-265. Charges the BP-265 in 2.5 hours. Includes BC-06 AC adapter.
  • BC-197
    The BC-197, 6-Way Multi-Charger is a new Icom charger for the IC-F3002 entry level series. The BC-197 is smaller in size and lower in height than Icom’s other 6 way charger, the BC-121N. There are 6 charging positions with function indicator LEDs.
  • BP-263
    AA (LR6)x 6 cells
  • BP-265
    7.4V/1900mAh 2000mAh Li-Ion battery
  • FA-SC55V
    Antenna (150-174 MHz)
  • FA-SC57U
    Antenna (430-470 MHz)
  • FA-SC57VS
    Stubby antenna 160 -174MHz
  • FA-SC73US
    Stubby antenna 450 -470MHz
  • HM-158L
    PMR and Amateur Hand microphone
  • HM-159SC/L
    Heavy-duty hand microphone.
  • HS-94
    Headset (Ear-piece type)
  • HS-95
    Hands-free operation. Requires VS-1/1L/1SL VOX unit for use.
  • HS-97
    (Earphone with Throat-mic)
  • LC-174
    Carry case. Can be used with all battery packs and battery case for the IC-T70E, IC-V80E and the IC-F3002 Series. Picture shows IC-T70E (radio not included)
  • MB-124
    Alligator type belt clip
  • OPC-2004
    Plug adapter cable. OPC-2004 is required when using the HS-94, HS-95 and HS-97 with the IC-V80E and IC-F3002 Series
  • OPC-474
    Cloning cable, radio-to-radio.
  • OPC-478
    Cloning Cable (PC to transceiver)
  • OPC-478UC
    USB Cloning Cable - 3.5mm plug type for IC-F3022 series
  • OPC-515L
    DC lead for battery chargers
  • UK6WAY
    UK6WAY is an Icom UK sourced 6 way charger for its latest range of entry level digital and PMR two way business radios, including the IC-F1000/F2000, IC-F1000D/F2000D, IC-F3002/F4002 and IC-F3102D/F4102D series. The 6 way charger is extremely robust and utilises the chargers from each radio thus making it a very cost effective solution.
