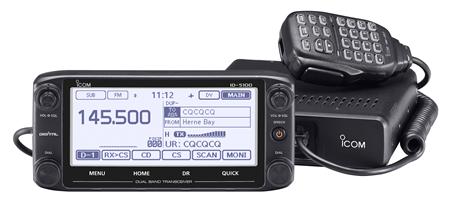

ID-5100E VHF/UHF Dual Band D-STAR Digital Transceiver Icom’s new ID-5100E VHF/UHF dual band D-STAR digital mobile transceiver enhances core features found in the celebrated IC-2820H mobile and incorporates the user-friendly technology found in the IC-7100. The radio features a large responsive touch screen and also integrated GPS, optional Bluetooth connectivity and support for Android devices. Available in Two Versions:
The standard version comes complete with multi-functional microphone and hanger, DC power and controller cables and CS-5100 cloning software. ID-5100E Deluxe*
Includes Bluetooth features and mounting equipment: MBF-1 Suction cup mounting bracket; MBA-2 controller bracket; MBR-100 Trunion mount; UT-133 Bluetooth unit and VS-3 Bluetooth headset. Saving £126 (inc.VAT)!
*Versions differ outside of UK Intuitive Touch Screen Operation
The intuitive touch screen interface provides quick and smooth operation for setting and editing various functions and memories. The 5.5 inch display (320 × 128 pixel) shows a large easy-to-see software keypad (Qwerty keyboard), and allows you to input alphanumeric characters quickly. VHF/UHF, VHF/VHF, UHF/UHF Dual Receive
The ID-5100E receives 118–174MHz and 375–550MHz* with dual receiver capability that allows you to receive two bands simultaneously (including within a single band)*. Almost all VHF & UHF communications are available to you! DV Dualwatch
The ID-5100E has simultaneous receive for FM/FM and FM/DV modes, and the capability of monitoring two DV signals. The main band audio has priority, if two DV signals come in at the same time. Integrated GPS receiver
The ID-5100E has an integrated GPS which allows you to transmit and receive position data from the built-in GPS receiver. Position, course, speed and altitude are shown on the display. The GPS position information can be used for exchanging position reports, tracing the GPS log and searching for nearby repeater sites. The GPS antenna is located in the remote head, no external GPS antenna required. DV/FM Repeater List Function
The DV/FM repeater list function assists you in accessing near-by repeaters, even where you are visiting an area for the first time. The function searches for near-by repeaters using the repeater memories with the GPS position information. To use the repeater list function, the position data of the repeater is required in the repeater list. Dplus Reflector Linking
Dplus Reflector link commands are added to the DR function to allow easy reflector operation. Use Reflector, link/unlink to Reflector, echo test and repeater information commands are selectable. UT-133 Bluetooth® Unit (Option)
This The UT-133 is the optional Bluetooth® board necessary for operation with the optional VS-3 headset and the optional RS-MS1A, Android™ application. VS-3 Bluetooth® Headset (Option)
The optional Bluetooth® headset, VS-3, can be used for hands-free communication and remotely control the ID-5100E with three programmable buttons. Providing you with convenient communication in a vehicle. RS-MS1A Android™ Application (Free Download Application From Google Play™)*
Connect to the ID-5100E for remote control of DR functions, link with a map application and send/receive messages and images over the DV mode. You can download the free Android RS-MS1A application from Google Play Store.
*Optional UT-133 Bluetooth unit must be installed in the ID-5100E. Some functions may be subject to Android phones and devices used. Other Features
• Menu-driven user interface
• DTMF via microphone or ID-5100 display
• SD Card slot for voice and data storage
• Enhanced D-PRS functions with object, position, item and weather formats
• Convenient memory contents management using CSV data format
• Speech function announces operating frequency, mode and received callsign (DV mode)
• Independent main dial, volume and SQL knobs for A/B bands
• AM airband dualwatch
• CS-5100, cloning software supplied
• 50W output power on both VHF and UHF bands Supplied Standard Accessories
• Hand microphone, HM-207
• Controller cable, OPC-837 (3.5 m; 11.4 ft)
• Microphone hanger
• CD (CS-5100 and instruction handbook PDF)
• Spare fuse To download the most up to date cloning/programming files of Icom D-STAR radios and data files of UK D-STAR repeaters and reflectors visit: http://downloads.d-staruk.co.uk/.
- Two versions available
- Intuitive touch screen operation, Menu-driven user interface
- VHF/UHF, VHF/VHF, UHF/UHF Dual receive
- DV Dualwatch
- Integrated GPS receiver
- DV/FM Repeater list function
- Dplus reflector linking
- Optional Bluetooth Connectivity
- RS-MS1A Android application (Free download application from Google Play)
- DTMF via microphone or ID-5100 display
- Enhanced D-PRS functions with object, position, item and weather formats
- Convenient memory contents management using CSV data format
- SD Card slot for voice and data storage
- Speech function announces operating frequency, mode and received callsign (DV mode)
- Independent main dial, volume and SQL knobs for A/B bands
- AM airband dualwatch
- 50W output power on both VHF and UHF bands
- CS-5100, cloning software supplied
